CNN — konvolyutsion neyron tarmoqlar

import os
os.environ["CUDA_VISIBLE_DEVICES"] = "-1"
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import torch
import torch.nn as nn
from sklearn.datasets import load_digits

torch.set_num_threads(4)
raqamlar = load_digits()
X_img = raqamlar.images / 16.0            # 0..16 -> 0..1
y_img = raqamlar.target

print(f"Rasmlar shakli : {X_img.shape}   -> {X_img.shape[0]} ta rasm, {X_img.shape[1]}x{X_img.shape[2]} piksel")
print(f"Sinflar        : {sorted(set(y_img))}")
print(f"Har sinfda     : {np.bincount(y_img)}")
print()
print("Bitta rasm — shunchaki 8x8 matritsa:")
print(np.round(X_img[0], 2))

rasm, axes = plt.subplots(2, 8, figsize=(14, 3.8))
for i, ax in enumerate(axes.ravel()):
    ax.imshow(X_img[i], cmap="gray_r")
    ax.set_title(str(y_img[i]), fontsize=11)
    ax.axis("off")

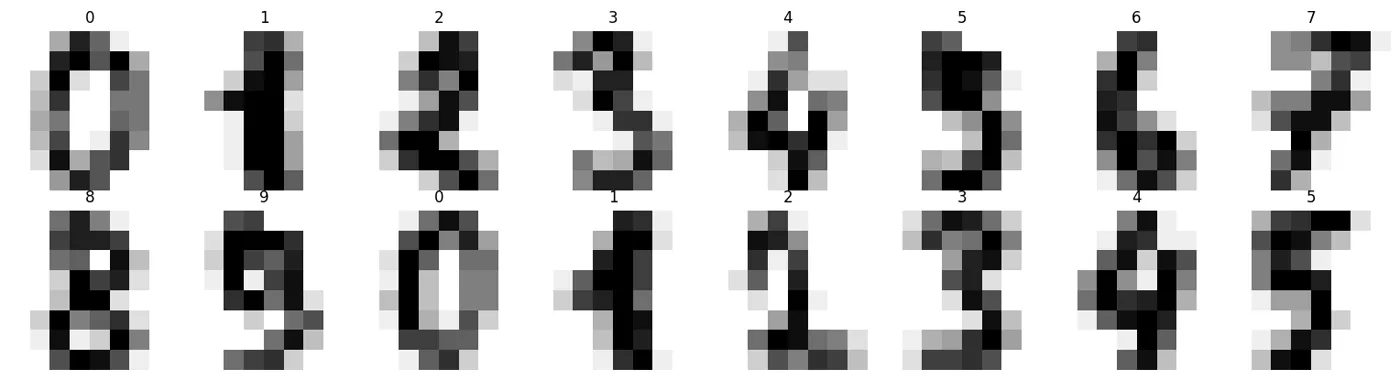

fig("raqamlar.png", caption="load_digits dataseti: 8x8 piksel, qo'lda yozilgan raqamlar. sklearn ichida — internet kerak emas.")

print("Flatten dan OLDIN — qo'shni piksellar bir-biriga yaqin:")
print(f"  (3,3) va (3,4) qo'shni   -> vektorda indeks {3*8+3} va {3*8+4}  (yonma-yon)")
print(f"  (3,3) va (4,3) qo'shni   -> vektorda indeks {3*8+3} va {4*8+3}  (8 ta uzoqda!)")
print()
print("Oddiy Dense qatlam uchun 64 element — shunchaki 64 ta mustaqil son.")
print("U '27 va 35 indekslar vertikal qo'shni' ekanini BILMAYDI.")
print()
# isbot: piksellarni ARALASHTIRAMIZ va natija o'zgarmaydi
r = np.random.default_rng(42)
tartib = r.permutation(64)
print("Isbot: hamma rasmda piksellarni BIR XIL tartibda aralashtiramiz.")
print("Agar Dense tarmoq fazoviy tuzilmani ishlatmasa, natija o'zgarmasligi kerak.")

from sklearn.model_selection import train_test_split
from torch.utils.data import TensorDataset, DataLoader

def qur(turi):
    if turi == "dense":
        return nn.Sequential(nn.Flatten(), nn.Linear(64, 128), nn.ReLU(),
                             nn.Dropout(0.2), nn.Linear(128, 10))
    return nn.Sequential(
        nn.Conv2d(1, 16, 3, padding=1), nn.ReLU(), nn.MaxPool2d(2),    # 8x8 -> 4x4
        nn.Conv2d(16, 32, 3, padding=1), nn.ReLU(), nn.MaxPool2d(2),   # 4x4 -> 2x2
        nn.Flatten(), nn.Dropout(0.2), nn.Linear(32 * 2 * 2, 10),
    )

def oqit(Xtr, ytr, Xte, yte, turi, epoxalar=30):
    torch.manual_seed(42)
    m = qur(turi)
    f = ((lambda a: torch.tensor(a, dtype=torch.float32).unsqueeze(1)) if turi == "cnn"
         else (lambda a: torch.tensor(a, dtype=torch.float32)))
    dl = DataLoader(TensorDataset(f(Xtr), torch.tensor(ytr)), batch_size=64, shuffle=True,
                    generator=torch.Generator().manual_seed(42))
    opt = torch.optim.Adam(m.parameters(), lr=0.003)
    kriteriy = nn.CrossEntropyLoss()
    for _ in range(epoxalar):
        m.train()
        for xb, yb in dl:
            opt.zero_grad(); kriteriy(m(xb), yb).backward(); opt.step()
    m.eval()
    with torch.no_grad():
        aniq = float((m(f(Xte)).argmax(1) == torch.tensor(yte)).float().mean())
    return aniq, sum(p.numel() for p in m.parameters())

# piksellari aralashtirilgan versiya
X_aralash = X_img.reshape(len(X_img), -1)[:, tartib].reshape(-1, 8, 8)
Xtr, Xte, ytr, yte = train_test_split(X_img, y_img, test_size=.3, random_state=42, stratify=y_img)
Xtr_a, Xte_a, _, _ = train_test_split(X_aralash, y_img, test_size=.3, random_state=42, stratify=y_img)

a_normal, _ = oqit(Xtr, ytr, Xte, yte, "dense")
a_aralash, _ = oqit(Xtr_a, ytr, Xte_a, yte, "dense")
print(f"Dense, oddiy rasmlar          : {a_normal:.4f}")
print(f"Dense, piksellar aralashtirilgan: {a_aralash:.4f}")
print(f"Farq                          : {a_aralash - a_normal:+.4f}")

def konvolyutsiya(rasm_2d, filtr):
    """Qo'lda konvolyutsiya — padding yo'q."""
    kh, kw = filtr.shape
    h, w = rasm_2d.shape
    natija = np.zeros((h - kh + 1, w - kw + 1))
    for i in range(natija.shape[0]):
        for j in range(natija.shape[1]):
            oyna = rasm_2d[i:i+kh, j:j+kw]
            natija[i, j] = float((oyna * filtr).sum())     # 11-bobdagi amal!
    return natija

# klassik filtrlar
filtrlar = {
    "vertikal chekka": np.array([[-1, 0, 1], [-1, 0, 1], [-1, 0, 1]], dtype=float),
    "gorizontal chekka": np.array([[-1, -1, -1], [0, 0, 0], [1, 1, 1]], dtype=float),
    "silliqlash": np.ones((3, 3)) / 9,
}
namuna = X_img[0]
rasm, axes = plt.subplots(1, 4, figsize=(15, 3.6))
axes[0].imshow(namuna, cmap="gray_r"); axes[0].set_title(f"asl (raqam {y_img[0]})"); axes[0].axis("off")
for ax, (nom, f_) in zip(axes[1:], filtrlar.items()):
    ax.imshow(konvolyutsiya(namuna, f_), cmap="gray_r")
    ax.set_title(nom, fontsize=10); ax.axis("off")

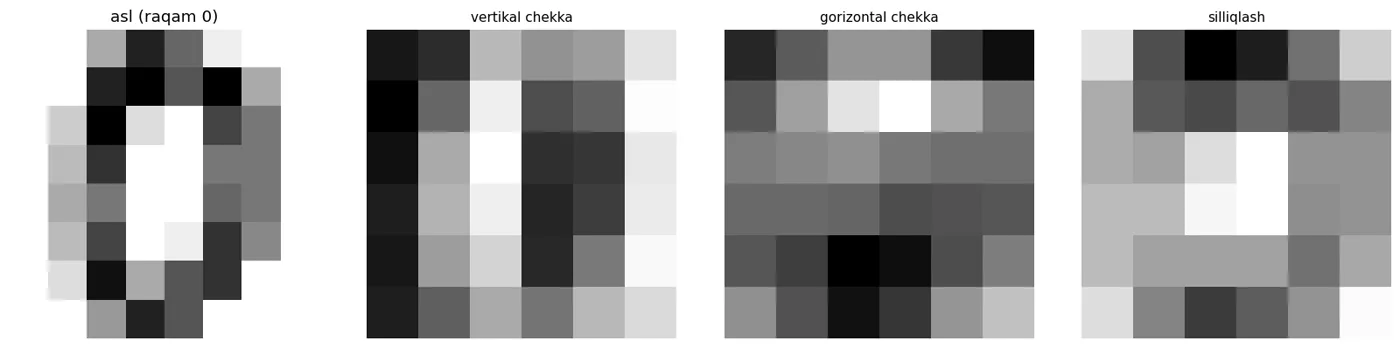

fig("filtrlar.png", caption="Bir xil rasm, uch xil filtr. Har filtr boshqa narsani ko'radi: vertikal chekka, gorizontal chekka, silliqlik.")

print("Konvolyutsiyaning ichi — 11-bobdagi skalyar ko'paytma:")
print(f"  natija[0,0] = sum(oyna * filtr)")
print()
print(f"Asl rasm shakli    : {namuna.shape}")
print(f"3x3 filtrdan keyin : {konvolyutsiya(namuna, filtrlar['silliqlash']).shape}  (chekkalar yo'qoladi)")

print("Conv2d parametrlarini sanaymiz:")
conv = nn.Conv2d(1, 16, 3, padding=1)
print(f"  nn.Conv2d(1, 16, 3): {sum(p.numel() for p in conv.parameters())} parametr")
print(f"    = 16 filtr x (1 kanal x 3 x 3) + 16 bias = {16*9} + 16")
print()
dense_ekvivalent = 64 * 64
print(f"Taqqoslash: Dense(64, 64) = {dense_ekvivalent} parametr")
print()
print("Mana CNN ning ikkinchi afzalligi: PARAMETR ULASHISH (weight sharing).")
print("Bitta filtr butun rasm bo'ylab ishlatiladi — har joy uchun alohida vazn kerak emas.")

kichik = X_img[0]
mp = nn.MaxPool2d(2)
ap = nn.AvgPool2d(2)
t = torch.tensor(kichik, dtype=torch.float32).unsqueeze(0).unsqueeze(0)

rasm, axes = plt.subplots(1, 3, figsize=(12, 3.4))
axes[0].imshow(kichik, cmap="gray_r"); axes[0].set_title(f"asl 8x8"); axes[0].axis("off")
axes[1].imshow(mp(t)[0, 0].numpy(), cmap="gray_r"); axes[1].set_title("MaxPool2d(2) -> 4x4"); axes[1].axis("off")
axes[2].imshow(ap(t)[0, 0].numpy(), cmap="gray_r"); axes[2].set_title("AvgPool2d(2) -> 4x4"); axes[2].axis("off")

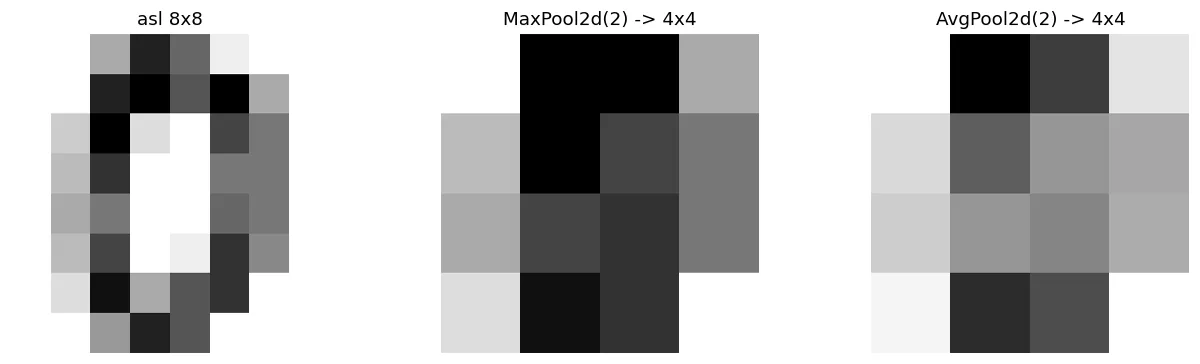

fig("pooling.png", caption="Pooling o'lchamni ikki barobar kamaytiradi. MaxPool eng kuchli signalni, AvgPool o'rtachani oladi.")

print(f"{'qadam':<28} {'shakl'}")
print("-" * 44)
x = t
print(f"{'kirish':<28} {tuple(x.shape)}")
for nom, qatlam in [("Conv2d(1,16,3,padding=1)", nn.Conv2d(1, 16, 3, padding=1)),
                    ("MaxPool2d(2)", nn.MaxPool2d(2)),
                    ("Conv2d(16,32,3,padding=1)", nn.Conv2d(16, 32, 3, padding=1)),
                    ("MaxPool2d(2)", nn.MaxPool2d(2)),
                    ("Flatten()", nn.Flatten())]:
    x = qatlam(x)
    print(f"{nom:<28} {tuple(x.shape)}")

def siljit(rasmlar, seed=0):
    """Har rasmni tasodifiy -2..+2 piksel siljitamiz."""
    r_ = np.random.default_rng(seed)
    natija = np.zeros_like(rasmlar)
    for i, im in enumerate(rasmlar):
        dx, dy = r_.integers(-2, 3, 2)
        natija[i] = np.roll(np.roll(im, dx, axis=0), dy, axis=1)
    return natija

X_siljigan = siljit(X_img)
rasm, axes = plt.subplots(2, 8, figsize=(14, 3.8))
for i in range(8):
    axes[0, i].imshow(X_img[i], cmap="gray_r"); axes[0, i].axis("off")
    axes[1, i].imshow(X_siljigan[i], cmap="gray_r"); axes[1, i].axis("off")
axes[0, 0].set_ylabel("asl"); axes[1, 0].set_ylabel("siljigan")

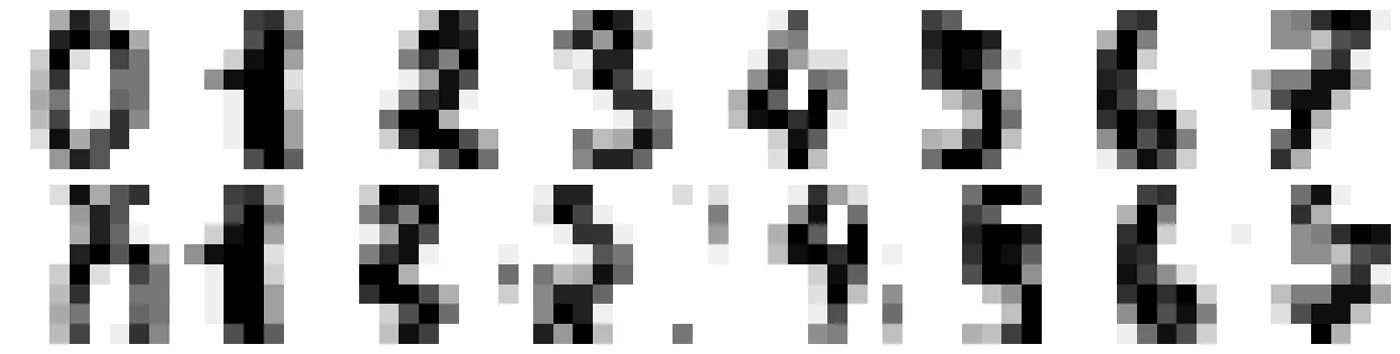

fig("siljish.png", caption="Yuqorida markazlashgan raqamlar, pastda tasodifiy siljitilgan. Inson ikkisini ham o'qiydi.")
print("Haqiqiy hayotda obyekt har doim markazda bo'lmaydi — shuning uchun bu sinov muhim.")

natijalar = []
for nom, Xd in [("markazlashgan (asl)", X_img), ("SILJITILGAN", X_siljigan)]:
    Xa, Xb, ya, yb = train_test_split(Xd, y_img, test_size=.3, random_state=42, stratify=y_img)
    for turi in ["dense", "cnn"]:
        a, n = oqit(Xa, ya, Xb, yb, turi)
        natijalar.append({"ma'lumot": nom, "model": turi, "aniqlik": round(a, 4), "parametrlar": n})
show(pd.DataFrame(natijalar))

tab = pd.DataFrame(natijalar)
m_dense = tab[(tab["ma'lumot"].str.startswith("markaz")) & (tab.model == "dense")].aniqlik.iloc[0]
m_cnn = tab[(tab["ma'lumot"].str.startswith("markaz")) & (tab.model == "cnn")].aniqlik.iloc[0]
s_dense = tab[(tab["ma'lumot"] == "SILJITILGAN") & (tab.model == "dense")].aniqlik.iloc[0]
s_cnn = tab[(tab["ma'lumot"] == "SILJITILGAN") & (tab.model == "cnn")].aniqlik.iloc[0]
print(f"Markazlashgan rasmlarda: dense {m_dense:.4f}  vs  CNN {m_cnn:.4f}   -> farq {m_cnn-m_dense:+.4f}")
print(f"Siljitilgan rasmlarda  : dense {s_dense:.4f}  vs  CNN {s_cnn:.4f}   -> farq {s_cnn-s_dense:+.4f}")
print()
print(f"CNN parametrlari: {tab[tab.model=='cnn'].parametrlar.iloc[0]}")
print(f"Dense parametrlari: {tab[tab.model=='dense'].parametrlar.iloc[0]}")

def kengaytir(Xtr_, ytr_, nusxa=3, seed=1):
    """Har rasmdan siljitilgan nusxalar yasaymiz."""
    r_ = np.random.default_rng(seed)
    Xs, ys = [Xtr_], [ytr_]
    for k in range(nusxa):
        Xs.append(siljit(Xtr_, seed=seed + k))
        ys.append(ytr_)
    return np.concatenate(Xs), np.concatenate(ys)

Xa, Xb, ya, yb = train_test_split(X_siljigan, y_img, test_size=.3, random_state=42, stratify=y_img)
Xa_keng, ya_keng = kengaytir(Xa, ya)
print(f"Train hajmi: {len(Xa)} -> {len(Xa_keng)}  (augmentatsiyadan keyin)")
print()
print(f"{'variant':<40} {'aniqlik':>9}")
print("-" * 52)
for nom, Xt_, yt_, turi in [
    ("dense, augmentatsiya YO'Q", Xa, ya, "dense"),
    ("dense, augmentatsiya BOR", Xa_keng, ya_keng, "dense"),
    ("CNN, augmentatsiya YO'Q", Xa, ya, "cnn"),
    ("CNN, augmentatsiya BOR", Xa_keng, ya_keng, "cnn"),
]:
    a, _ = oqit(Xt_, yt_, Xb, yb, turi)
    print(f"{nom:<40} {a:>9.4f}")

show(pd.DataFrame([
    {"Blok": "1. Conv + ReLU", "Nima qiladi": "Mahalliy naqshlarni topadi (chekka, burchak)"},
    {"Blok": "2. Conv + ReLU", "Nima qiladi": "Naqshlardan shakllarni quradi"},
    {"Blok": "3. Pool", "Nima qiladi": "O'lchamni kamaytiradi, pozitsiyaga chidam beradi"},
    {"Blok": "(1-3 ni takrorlash)", "Nima qiladi": "Har takrorda tushunchalar abstraktroq bo'ladi"},
    {"Blok": "4. Flatten", "Nima qiladi": "Matritsani vektorga aylantiradi"},
    {"Blok": "5. Dense + chiqish", "Nima qiladi": "Yakuniy qaror"},
]))

torch.manual_seed(42)
cnn = qur("cnn")
print("Bizning CNN:")
x = torch.zeros(1, 1, 8, 8)
for i, qatlam in enumerate(cnn):
    x = qatlam(x)
    nomi = qatlam.__class__.__name__
    n_par = sum(p.numel() for p in qatlam.parameters())
    print(f"  {i}. {nomi:<12} -> {str(tuple(x.shape)):<18} parametr: {n_par}")
print(f"\nJami parametr: {sum(p.numel() for p in cnn.parameters())}")

show(pd.DataFrame([
    {"Holat": "Ma'lumot 1000 dan kam", "Yechim": "Tayyor modelni oling, faqat oxirgi qatlamni o'qitng",
     "Nomi": "Feature extraction"},
    {"Holat": "Ma'lumot 1000-10000", "Yechim": "Tayyor model + oxirgi bloklarni ham o'qitish",
     "Nomi": "Fine-tuning"},
    {"Holat": "Ma'lumot 100000+", "Yechim": "Noldan o'qitish mumkin",
     "Nomi": "Training from scratch"},
]))
print()
print("Nega ishlaydi: birinchi qatlamlar chekka va tekstura topadi —")
print("ular MUSHUK rasmida ham, RENTGEN rasmida ham bir xil kerak.")
print()
print("Amalda: torchvision.models yoki HuggingFace dan tayyor model olinadi.")
print("Bu bobda internetsiz ishlaganimiz uchun yuklab olmadik —")
print("YOLO kitobida (o'quv rejadagi 11-bosqich) buni to'liq ko'rasiz.")

show(pd.DataFrame([
    {"Tushuncha": "Rasm = matritsa", "Bitta jumla": "8x8 piksel — oddiy sonlar jadvali"},
    {"Tushuncha": "Dense ning muammosi", "Bitta jumla": "Flatten fazoviy bog'liqlikni yo'qotadi"},
    {"Tushuncha": "Konvolyutsiya", "Bitta jumla": "Filtr rasm bo'ylab yuradi — 11-bobdagi skalyar ko'paytma"},
    {"Tushuncha": "Parametr ulashish", "Bitta jumla": "Bitta filtr butun rasm uchun — kam parametr"},
    {"Tushuncha": "Pooling", "Bitta jumla": "O'lchamni kamaytiradi, pozitsiyaga chidam beradi"},
    {"Tushuncha": "CNN ning afzalligi", "Bitta jumla": "Rasmda emas — TRANSLYATSIYA INVARIANTLIGIDA"},
    {"Tushuncha": "Markazlashgan rasm", "Bitta jumla": "Dense ham yetarli — o'lchab ko'rsatildi"},
    {"Tushuncha": "Augmentatsiya", "Bitta jumla": "Eng arzon kuchaytirish; faqat TRAIN ga"},
]))
