Clustering: K-Means, DBSCAN, hierarchical

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from sklearn.cluster import KMeans
from sklearn.preprocessing import StandardScaler
from sklearn.impute import SimpleImputer

df = pd.read_csv(DATA / "uy_ijara.csv")
son = ["xonalar", "maydon_m2", "qavat", "qavatlar_soni", "metro_km", "mebel", "qurilgan_yil"]
X = SimpleImputer(strategy="median").fit_transform(df[son])
Xs = StandardScaler().fit_transform(X)

km = KMeans(n_clusters=4, n_init=10, random_state=42).fit(Xs)
print(f"Guruhlar: {np.bincount(km.labels_)}")
print(f"Iteratsiyalar: {km.n_iter_}")
print(f"Inertia (guruh ichidagi tarqalish): {km.inertia_:.1f}")

def qolda_kmeans(X, k=4, qadamlar=20, seed=42):
    r = np.random.default_rng(seed)
    markaz = X[r.choice(len(X), k, replace=False)]
    for _ in range(qadamlar):
        masofa = ((X[:, None, :] - markaz[None, :, :]) ** 2).sum(axis=2)
        yorliq = masofa.argmin(axis=1)
        yangi = np.array([X[yorliq == j].mean(axis=0) if (yorliq == j).any() else markaz[j]
                          for j in range(k)])
        if np.allclose(yangi, markaz):
            break
        markaz = yangi
    inertia = sum(((X[yorliq == j] - markaz[j]) ** 2).sum() for j in range(k))
    return yorliq, markaz, inertia

y_q, m_q, in_q = qolda_kmeans(Xs, k=4)
print(f"Qo'lda yozilgan inertia : {in_q:.1f}")
print(f"sklearn inertia         : {km.inertia_:.1f}")
print(f"Guruh hajmlari (qo'lda) : {np.bincount(y_q)}")

inertia = []
K_lar = range(1, 11)
for k in K_lar:
    inertia.append(KMeans(n_clusters=k, n_init=10, random_state=42).fit(Xs).inertia_)

jadval = pd.DataFrame({"K": list(K_lar), "inertia": [round(i, 1) for i in inertia]})
jadval["kamayish"] = [None] + [round(inertia[i-1] - inertia[i], 1) for i in range(1, len(inertia))]
show(jadval)

from sklearn.metrics import silhouette_score

sil = []
for k in range(2, 11):
    yl = KMeans(n_clusters=k, n_init=10, random_state=42).fit_predict(Xs)
    sil.append(silhouette_score(Xs, yl))

rasm, axes = plt.subplots(1, 2, figsize=(13.5, 4.5))
axes[0].plot(list(K_lar), inertia, "o-", lw=2, color="#1a73e8")
axes[0].set_xlabel("K (guruhlar soni)"); axes[0].set_ylabel("Inertia")
axes[0].set_title("Elbow usuli — 'tirsak' qidiriladi", fontweight="bold")
axes[0].grid(alpha=.3)

axes[1].plot(range(2, 11), sil, "o-", lw=2, color="#137333")
eng_k = int(np.argmax(sil)) + 2
axes[1].axvline(eng_k, ls="--", color="red", lw=1.2, label=f"eng baland: K={eng_k}")
axes[1].set_xlabel("K"); axes[1].set_ylabel("Silhouette ball")
axes[1].set_title("Silhouette — aniqroq mezon", fontweight="bold")
axes[1].legend(); axes[1].grid(alpha=.3)

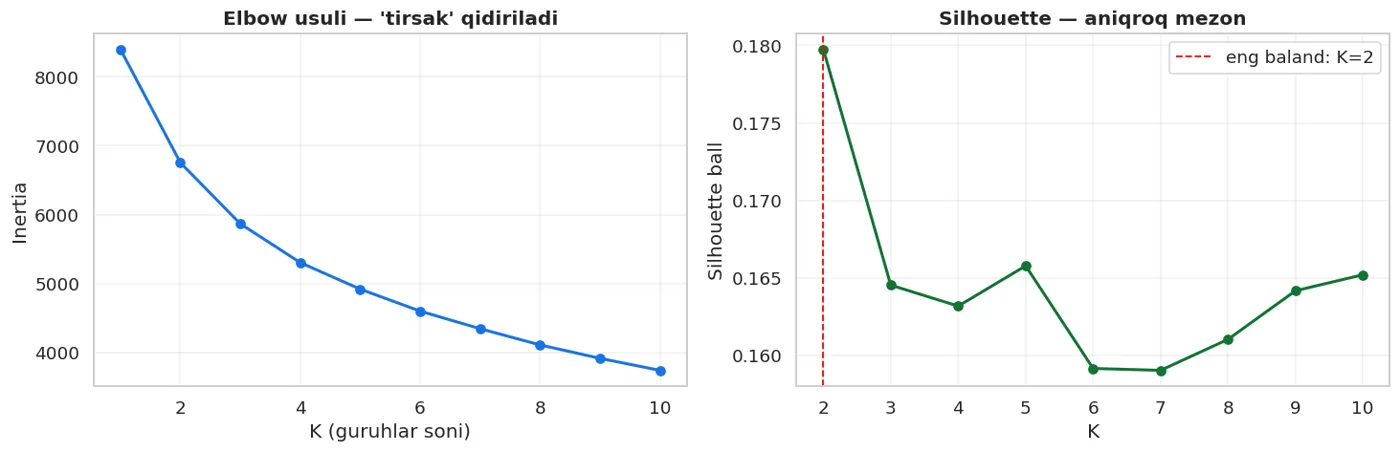

fig("elbow.png", caption="Chapda elbow — 'tirsak' ko'zga ko'rinmasligi mumkin. O'ngda silhouette — maksimal nuqta aniqroq.")

print(f"{'K':>4} {'silhouette':>12}")
print("-" * 18)
for k, s in zip(range(2, 11), sil):
    belgi = "  <-- eng baland" if k == eng_k else ""
    print(f"{k:>4} {s:>12.4f}{belgi}")

print("Silhouette har bir nuqta uchun hisoblanadi:")
print("  a = o'z guruhidagi nuqtalarga o'rtacha masofa")
print("  b = eng yaqin BOSHQA guruhgacha o'rtacha masofa")
print("  silhouette = (b - a) / max(a, b)")
print()
show(pd.DataFrame([
    {"Qiymat": "+1 ga yaqin", "Ma'nosi": "Nuqta o'z guruhida mahkam, boshqalardan uzoq"},
    {"Qiymat": "0 atrofida", "Ma'nosi": "Ikki guruh chegarasida turibdi"},
    {"Qiymat": "manfiy", "Ma'nosi": "Noto'g'ri guruhga tushgan"},
]))

from sklearn.metrics import silhouette_samples
km_eng = KMeans(n_clusters=eng_k, n_init=10, random_state=42).fit(Xs)  # eng_k — silhouette eng baland bo'lgan K
namunalar = silhouette_samples(Xs, km_eng.labels_)
tah = pd.DataFrame({"guruh": km_eng.labels_, "silhouette": namunalar})
g = tah.groupby("guruh").silhouette.agg(["size", "mean", "min"]).round(4)
g.columns = ["qatorlar", "o'rtacha sil", "eng past sil"]
show(g.reset_index())
print()
print(f"Manfiy silhouette li qatorlar: {int((namunalar < 0).sum())} / {len(namunalar)}")

natija = df[son].copy()
natija["guruh"] = km_eng.labels_
xulosa = natija.groupby("guruh").agg({
    "xonalar": "mean", "maydon_m2": "mean", "metro_km": "mean",
    "mebel": "mean", "qurilgan_yil": "mean",
}).round(2)
xulosa["qatorlar"] = natija.groupby("guruh").size()
show(xulosa.reset_index())
print()
print("Qo'shimcha: guruhlar narx va tez ketish bo'yicha farq qiladimi?")
tekshir = df.assign(guruh=km_eng.labels_).groupby("guruh").agg({
    "narx_usd": "mean", "ijaraga_berildi_30k": "mean"}).round(3)
show(tekshir.reset_index())

show(pd.DataFrame([
    {"Silhouette": "0.70 dan yuqori", "Ma'nosi": "Kuchli, aniq ajralgan guruhlar"},
    {"Silhouette": "0.50 - 0.70", "Ma'nosi": "Ishonchli tuzilma"},
    {"Silhouette": "0.25 - 0.50", "Ma'nosi": "Kuchsiz tuzilma — ehtiyot bo'ling"},
    {"Silhouette": "0.25 dan past", "Ma'nosi": "Tabiiy guruh YO'Q deb hisoblanadi"},
]))

r_sh = np.random.default_rng(1)
shovqin_data = r_sh.normal(size=(1200, 7))      # BUTUNLAY tasodifiy
km_sh = KMeans(n_clusters=4, n_init=10, random_state=42).fit(shovqin_data)
print("BUTUNLAY TASODIFIY ma'lumotda K-Means:")
print(f"  guruh hajmlari : {np.bincount(km_sh.labels_)}")
print(f"  silhouette     : {silhouette_score(shovqin_data, km_sh.labels_):.4f}")
print()
print(f"Bizning haqiqiy ma'lumotda (K={eng_k}): {silhouette_score(Xs, km_eng.labels_):.4f}")
print()
nisbat = silhouette_score(Xs, km_eng.labels_) / silhouette_score(shovqin_data, km_sh.labels_)
print(f"Nisbat: bizning ball tasodifdan {nisbat:.1f} barobar yuqori")

from sklearn.datasets import make_moons, make_blobs

r = np.random.default_rng(42)
# 1) yarim oy shakli
X_oy, y_oy = make_moons(n_samples=400, noise=.06, random_state=42)
# 2) har xil hajmdagi guruhlar
X_h, y_h = make_blobs(n_samples=[400, 60, 60], centers=[[0,0],[4,4],[-4,4]],
                      cluster_std=[1.4, .4, .4], random_state=42)

rasm, axes = plt.subplots(2, 2, figsize=(12, 8))
for j, (Xd, nom) in enumerate([(X_oy, "Yarim oy"), (X_h, "Har xil hajm")]):
    Xd_s = StandardScaler().fit_transform(Xd)
    km_t = KMeans(n_clusters=2 if j == 0 else 3, n_init=10, random_state=42).fit_predict(Xd_s)
    axes[j, 0].scatter(Xd[:, 0], Xd[:, 1], c=km_t, cmap="viridis", s=18, alpha=.8)
    axes[j, 0].set_title(f"{nom}: K-Means", fontweight="bold")
    from sklearn.cluster import DBSCAN
    db_t = DBSCAN(eps=.3 if j == 0 else .5, min_samples=5).fit_predict(Xd_s)
    axes[j, 1].scatter(Xd[:, 0], Xd[:, 1], c=db_t, cmap="viridis", s=18, alpha=.8)
    axes[j, 1].set_title(f"{nom}: DBSCAN", fontweight="bold")
    for a in axes[j]: a.grid(alpha=.3)

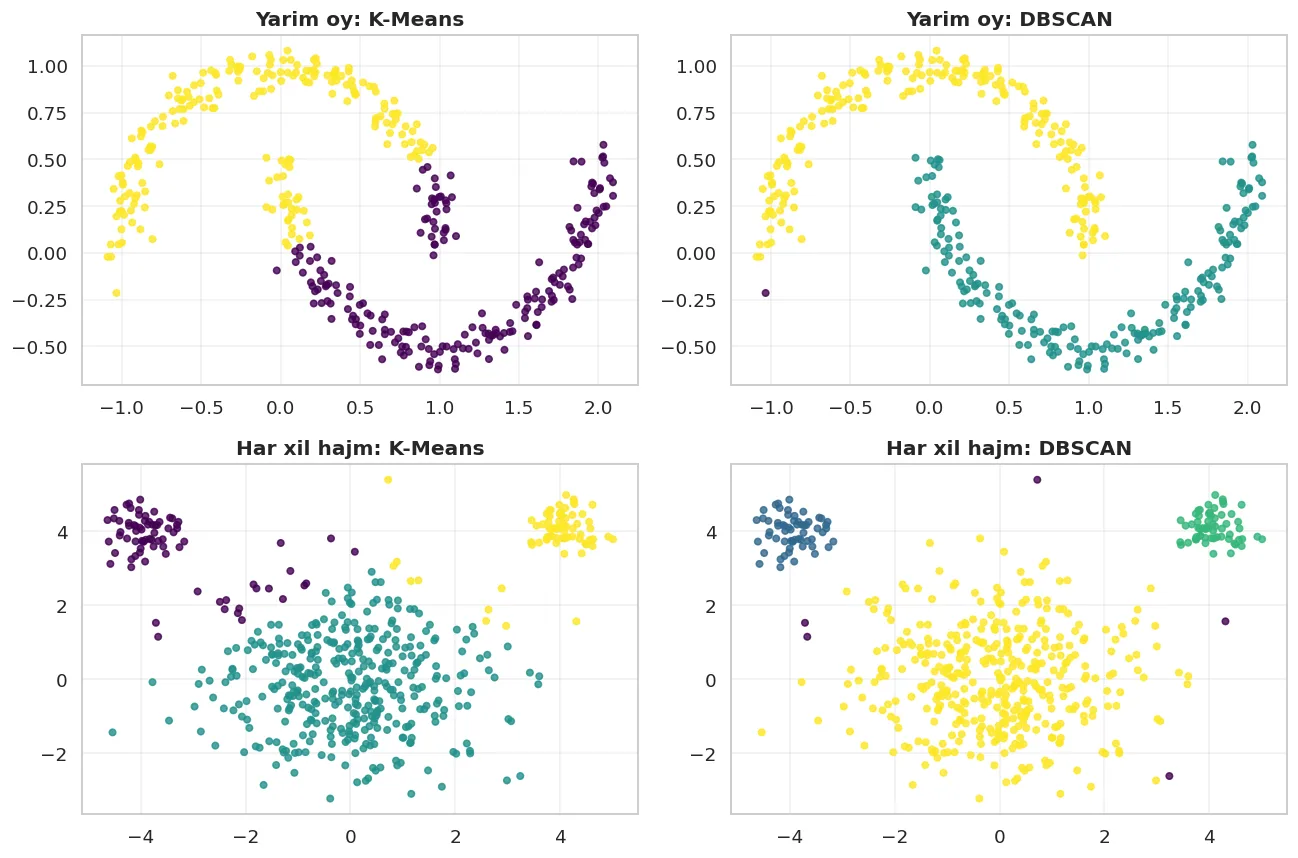

fig("kmeans_cheklov.png", caption="K-Means doira shaklidagi, teng hajmli guruhlarni kutadi. DBSCAN esa har qanday shaklni topadi.")

show(pd.DataFrame([
    {"Cheklov": "Doira shaklini kutadi", "Oqibati": "Yarim oy yoki halqani bo'lolmaydi"},
    {"Cheklov": "K ni siz berasiz", "Oqibati": "Noto'g'ri K -> ma'nosiz guruhlar"},
    {"Cheklov": "Teng hajm kutadi", "Oqibati": "Kichik guruhni kattaning ichiga qo'shadi"},
    {"Cheklov": "Chetki qiymatga sezgir", "Oqibati": "Bitta uzoq nuqta markazni tortadi"},
    {"Cheklov": "Boshlang'ich markazga bog'liq", "Oqibati": "n_init=10 shu uchun kerak"},
]))

print("Boshlang'ich markaz ta'siri — n_init ning roli:")
print(f"{'n_init':>8} {'inertia':>12} {'turli natijalar soni':>22}")
print("-" * 46)
for ni in [1, 3, 10]:
    natijalar = set()
    inertialar = []
    for seed in range(8):
        k_t = KMeans(n_clusters=4, n_init=ni, random_state=seed).fit(Xs)
        inertialar.append(round(k_t.inertia_, 1))
        natijalar.add(round(k_t.inertia_, 1))
    print(f"{ni:>8} {np.mean(inertialar):>12.1f} {len(natijalar):>22}")

from sklearn.cluster import DBSCAN

print(f"{'eps':>6} {'min_samples':>12} {'guruhlar':>10} {'shovqin':>9} {'silhouette':>12}")
print("-" * 54)
for eps in [0.5, 0.8, 1.2, 1.8]:
    db = DBSCAN(eps=eps, min_samples=10).fit(Xs)
    n_guruh = len(set(db.labels_)) - (1 if -1 in db.labels_ else 0)
    shovqin = int((db.labels_ == -1).sum())
    if n_guruh > 1:
        mask = db.labels_ != -1
        s = silhouette_score(Xs[mask], db.labels_[mask]) if mask.sum() > n_guruh else float("nan")
    else:
        s = float("nan")
    print(f"{eps:>6} {10:>12} {n_guruh:>10} {shovqin:>9} {s:>12.4f}")

from sklearn.cluster import AgglomerativeClustering
from scipy.cluster.hierarchy import dendrogram, linkage

namuna = Xs[np.random.default_rng(42).choice(len(Xs), 60, replace=False)]
Z = linkage(namuna, method="ward")

rasm, ax = plt.subplots(figsize=(11, 4.5))
dendrogram(Z, ax=ax, no_labels=True, color_threshold=7)
ax.set_xlabel("Namunalar"); ax.set_ylabel("Birlashish masofasi")
ax.set_title("Dendrogramma — guruhlar qanday birlashadi", fontweight="bold")

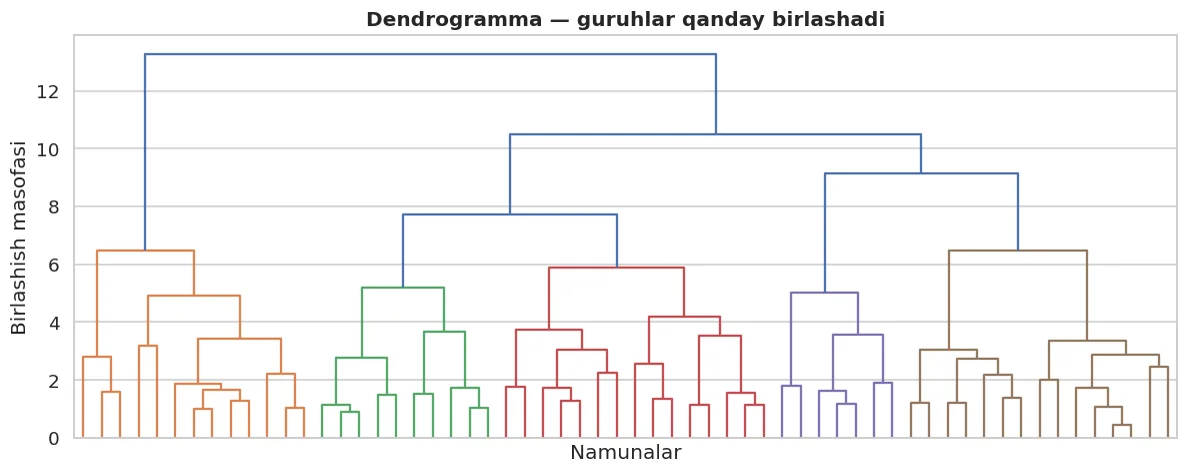

fig("dendrogram.png", caption="Pastdan yuqoriga: har nuqta o'z guruhida boshlanadi, keyin bosqichma-bosqich birlashadi. Gorizontal kesim K ni beradi.")

print(f"{'K':>4} {'silhouette (ward)':>20}")
print("-" * 26)
for k in [2, 3, 4, 5, 6]:
    yl = AgglomerativeClustering(n_clusters=k, linkage="ward").fit_predict(Xs)
    print(f"{k:>4} {silhouette_score(Xs, yl):>20.4f}")

import time
from sklearn.metrics import calinski_harabasz_score, davies_bouldin_score

print(f"{'usul':<28} {'guruhlar':>9} {'silhouette':>12} {'Calinski-H':>12} {'vaqt':>8}")
print("-" * 76)
for nom, model in [
    ("KMeans(4)", KMeans(n_clusters=4, n_init=10, random_state=42)),
    ("DBSCAN(eps=1.2)", DBSCAN(eps=1.2, min_samples=10)),
    ("Agglomerative(4)", AgglomerativeClustering(n_clusters=4, linkage="ward")),
]:
    t0 = time.perf_counter()
    yl = model.fit_predict(Xs)
    dt = time.perf_counter() - t0
    mask = yl != -1
    n_g = len(set(yl[mask]))
    if n_g > 1:
        s = silhouette_score(Xs[mask], yl[mask])
        ch = calinski_harabasz_score(Xs[mask], yl[mask])
    else:
        s = ch = float("nan")
    print(f"{nom:<28} {n_g:>9} {s:>12.4f} {ch:>12.1f} {dt:>7.2f}s")

show(pd.DataFrame([
    {"Mezon": "Silhouette", "Diapazon": "-1 .. +1", "Yaxshi": "Yuqori", "Izoh": "Eng ko'p ishlatiladigan"},
    {"Mezon": "Calinski-Harabasz", "Diapazon": "0 .. inf", "Yaxshi": "Yuqori", "Izoh": "Guruhlar orasi / ichi nisbati"},
    {"Mezon": "Davies-Bouldin", "Diapazon": "0 .. inf", "Yaxshi": "PAST", "Izoh": "Teskari o'qiladi"},
]))

show(pd.DataFrame([
    {"Usul": "K-Means", "Qachon": "Katta ma'lumot, doira shaklidagi guruhlar",
     "K kerakmi": "HA", "Shovqin": "Ajratmaydi", "Tezlik": "Juda tez"},
    {"Usul": "DBSCAN", "Qachon": "Noma'lum shakl, shovqin bor",
     "K kerakmi": "yo'q (eps kerak)", "Shovqin": "AJRATADI (-1)", "Tezlik": "O'rtacha"},
    {"Usul": "Agglomerative", "Qachon": "Kichik ma'lumot, ierarxiya kerak",
     "K kerakmi": "yo'q (dendrogramma)", "Shovqin": "Ajratmaydi", "Tezlik": "Sekin (O(n^2)+)"},
    {"Usul": "GaussianMixture", "Qachon": "Guruhlar ustma-ust tushsa",
     "K kerakmi": "HA", "Shovqin": "Ajratmaydi", "Tezlik": "Tez"},
]))

from sklearn.metrics import adjusted_rand_score

yorliq_km = KMeans(n_clusters=2, n_init=10, random_state=42).fit_predict(Xs)
y_haqiqiy = df["ijaraga_berildi_30k"].to_numpy()
print(f"K-Means(2) va haqiqiy target mosligi (ARI): {adjusted_rand_score(y_haqiqiy, yorliq_km):.4f}")
print()
print("Taqqoslash jadvali:")
show(pd.crosstab(yorliq_km, y_haqiqiy, rownames=["guruh"], colnames=["haqiqat"]).reset_index())

show(pd.DataFrame([
    {"Tushuncha": "Vazifa", "Bitta jumla": "Yorliqsiz ma'lumotda tabiiy guruhlar topish"},
    {"Tushuncha": "K-Means", "Bitta jumla": "Markaz tashla -> biriktir -> markazni ko'chir"},
    {"Tushuncha": "n_init", "Bitta jumla": "Boshlang'ich markaz tasodifiy — 10 marta urinish kerak"},
    {"Tushuncha": "K ni tanlash", "Bitta jumla": "Elbow silliq bo'ladi; silhouette aniqroq"},
    {"Tushuncha": "Eng muhim qadam", "Bitta jumla": "Guruhlarni O'QISH va nom berish"},
    {"Tushuncha": "K-Means cheklovi", "Bitta jumla": "Doira shakl, teng hajm, K ni siz berasiz"},
    {"Tushuncha": "DBSCAN", "Bitta jumla": "K kerak emas, shovqinni ajratadi; yuqori o'lchovda ishlamaydi"},
    {"Tushuncha": "Agglomerative", "Bitta jumla": "Dendrogramma — K ni keyin tanlaysiz"},
    {"Tushuncha": "Scaling", "Bitta jumla": "Hammasiga SHART — masofaga tayanadi"},
]))
